BottomSheet

与 @gorhom/bottom-sheet 兼容的底部弹出层。

Android

iOS

Web

Included in Expo Go

GitHub

npm

更新日志

Recommended version:

~58.0.1

一个 API 与 @gorhom/bottom-sheet 兼容的 BottomSheet 组件。它封装了平台专属的 @expo/ui 基元：Android 上的 Jetpack Compose ModalBottomSheet，以及 iOS 上的 SwiftUI BottomSheet。在 web 上，它使用 HTML <dialog> 底部弹出面板。

如果你需要更精细地控制平台专属的样式、修饰符或布局行为，请直接使用原生基元。

安装

Terminal

- npx expo install @expo/ui

- yarn expo install @expo/ui

- pnpm expo install @expo/ui

- bun expo install @expo/ui

If you are installing this in an existing React Native app, make sure to install expo in your project.

从 `@gorhom/bottom-sheet` 迁移

将导入语句从：

import BottomSheet, { BottomSheetView } from '@gorhom/bottom-sheet';

更新为使用 @expo/ui/community/bottom-sheet：

import BottomSheet, { BottomSheetView } from '@expo/ui/community/bottom-sheet';

此实现不需要来自 react-native-gesture-handler 的 GestureHandlerRootView。如果应用的其他部分需要它，可以保留。
不支持 BottomSheetBackdrop、BottomSheetHandle、BottomSheetFooter、BottomSheetDraggableView、BottomSheetVirtualizedList、BottomSheetFlashList、useBottomSheetModal、useBottomSheetSpringConfigs 和 useBottomSheetTimingConfigs 等组件与 hook 导出。为了保持 API 兼容性，会导出部分相关属性类型。

基本用法

BottomSheetExample.tsx

import { useRef } from 'react';
import { Button, Text, useColorScheme, View } from 'react-native';
import BottomSheet, { BottomSheetView } from '@expo/ui/community/bottom-sheet';

export default function BottomSheetExample() {
  const colorScheme = useColorScheme();
  const ink = { color: colorScheme === 'dark' ? '#FFFFFF' : '#000000' };
  const sheetRef = useRef<BottomSheet>(null);

  return (
    <View style={{ flex: 1 }}>
      <Button title="Open" onPress={() => sheetRef.current?.snapToIndex(0)} />

      <BottomSheet
        ref={sheetRef}
        snapPoints={['25%', '50%', '90%']}
        index={-1}
        onChange={index => {
          console.log('onChange', index);
        }}
        onClose={() => {
          console.log('closed');
        }}
        enablePanDownToClose>
        <BottomSheetView style={{ flex: 1, padding: 24, alignItems: 'center' }}>
          <Text style={ink}>Sheet content</Text>
        </BottomSheetView>
      </BottomSheet>
    </View>
  );
}

`BottomSheetModal`

从 @gorhom/bottom-sheet 的 modal API 迁移时，请使用 BottomSheetModal。它初始处于关闭状态，并通过 present() 打开。

BottomSheetModalExample.tsx

import { useRef } from 'react';
import { Button, Text, useColorScheme, View } from 'react-native';
import { BottomSheetModal, BottomSheetView } from '@expo/ui/community/bottom-sheet';

export default function BottomSheetModalExample() {
  const colorScheme = useColorScheme();
  const ink = { color: colorScheme === 'dark' ? '#FFFFFF' : '#000000' };
  const modalRef = useRef<BottomSheetModal>(null);

  return (
    <View style={{ flex: 1 }}>
      <Button title="Present" onPress={() => modalRef.current?.present()} />

      <BottomSheetModal ref={modalRef} snapPoints={['50%', '90%']} enablePanDownToClose>
        <BottomSheetView style={{ padding: 24 }}>
          <Text style={ink}>Modal content</Text>
          <Button title="Dismiss" onPress={() => modalRef.current?.dismiss()} />
        </BottomSheetView>
      </BottomSheetModal>
    </View>
  );
}

动态尺寸

未提供 snapPoints 时，弹出面板默认会根据内容调整尺寸。请使用 BottomSheetView 作为弹出面板内容的包装组件。

DynamicBottomSheetExample.tsx

import { useRef } from 'react';
import { Button, Text, useColorScheme, View } from 'react-native';
import BottomSheet, { BottomSheetView } from '@expo/ui/community/bottom-sheet';

export default function DynamicBottomSheetExample() {
  const colorScheme = useColorScheme();
  const ink = { color: colorScheme === 'dark' ? '#FFFFFF' : '#000000' };
  const sheetRef = useRef<BottomSheet>(null);

  return (
    <View style={{ flex: 1 }}>
      <Button title="Open" onPress={() => sheetRef.current?.present()} />

      <BottomSheet ref={sheetRef} index={-1} enablePanDownToClose>
        <BottomSheetView style={{ padding: 24 }}>
          <Text style={ink}>This sheet sizes itself to its content.</Text>
        </BottomSheetView>
      </BottomSheet>
    </View>
  );
}

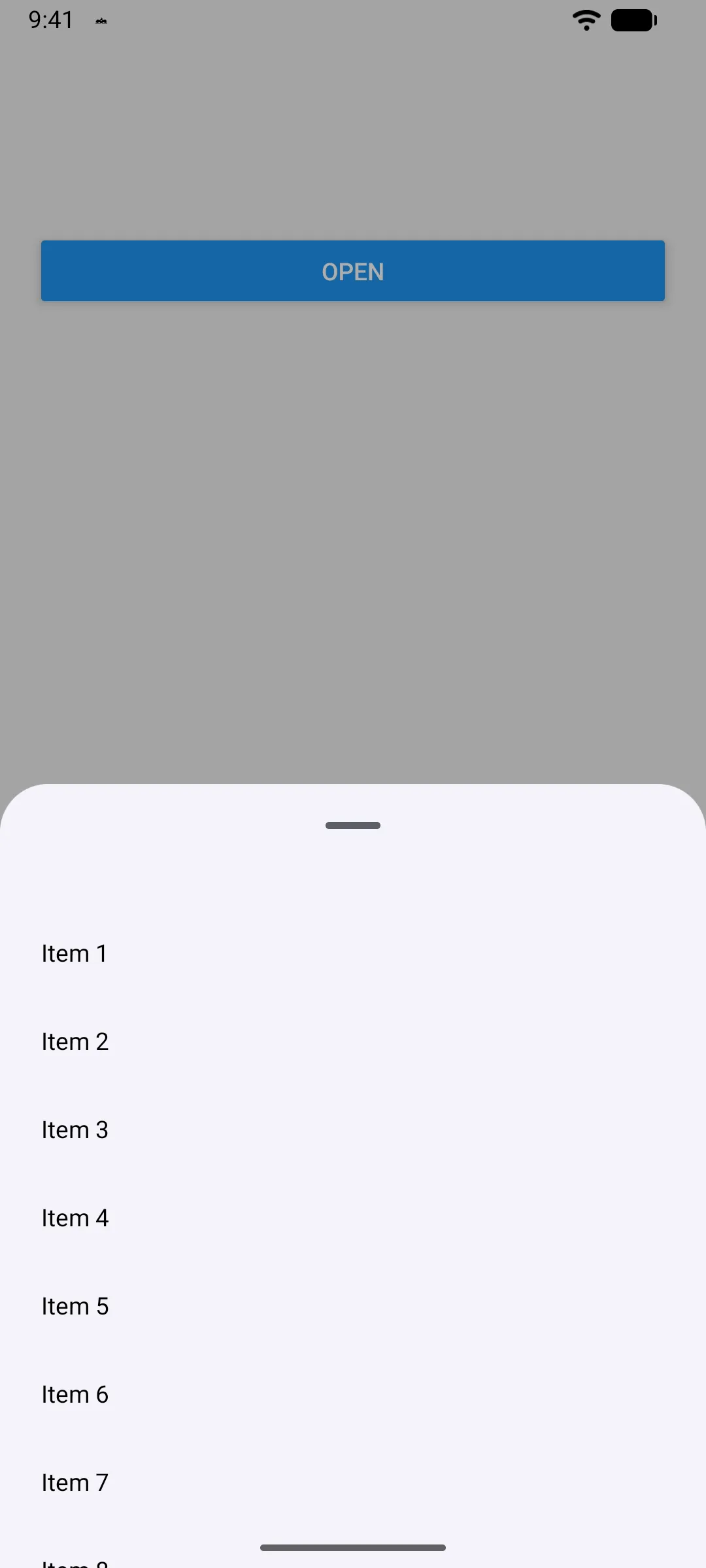

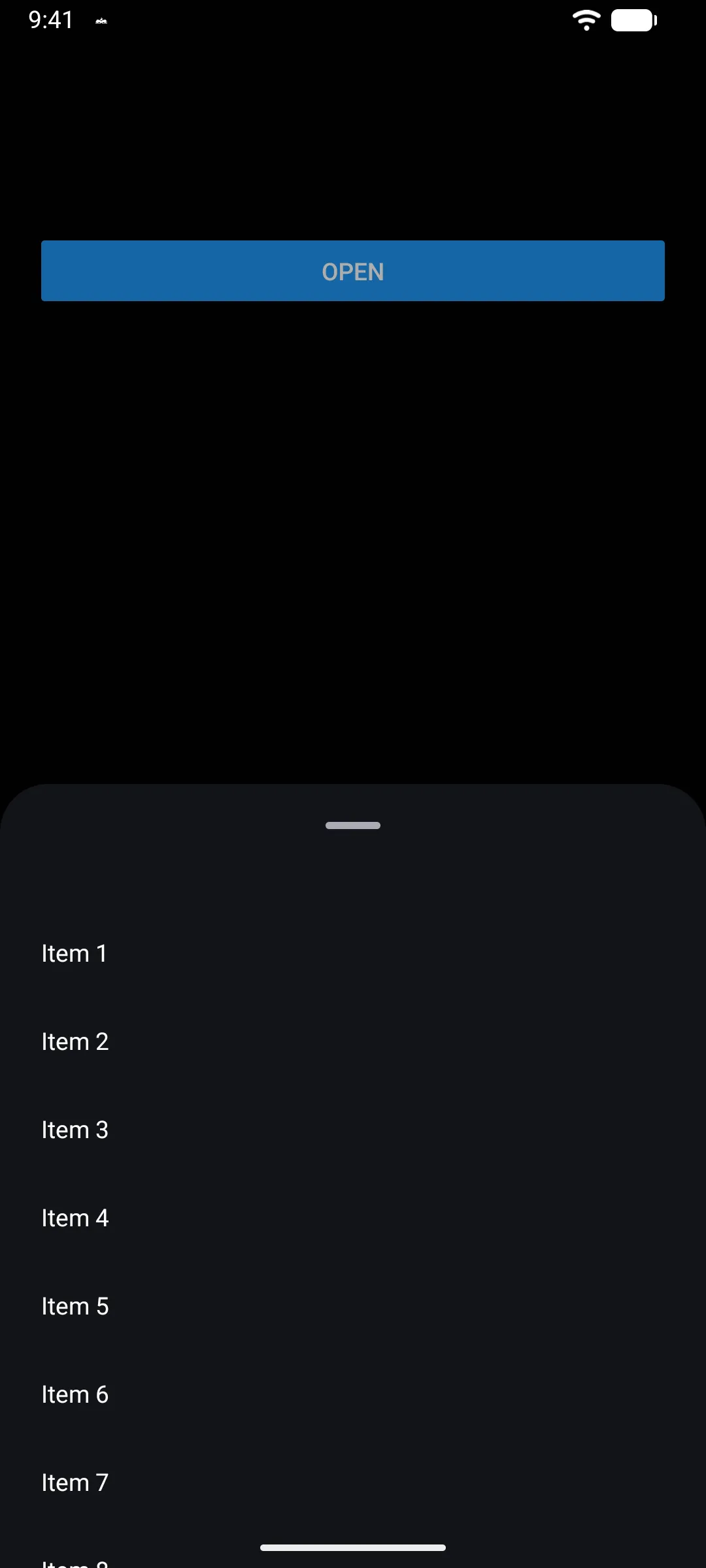

可滚动的 React Native 内容

底部弹出面板支持将 React Native FlatList 或 ScrollView（或 FlashList 或 Legend List 等高性能列表）作为子组件，以显示可滚动内容。启用 nestedScrollEnabled 后，列表会先滚动自身内容。到达顶部边缘后，剩余的拖动操作会移动弹出面板。为了兼容 @gorhom/bottom-sheet，还会导出 BottomSheetFlatList 和 BottomSheetScrollView，但它们只是 React Native 组件的直接重新导出。

BottomSheetScrollableExample.tsx

import { useRef } from 'react';
import { Button, FlatList, Text, useColorScheme, View } from 'react-native';
import BottomSheet from '@expo/ui/community/bottom-sheet';

const DATA = Array.from({ length: 50 }, (_, i) => `Item ${i + 1}`);

export default function BottomSheetScrollableExample() {
  const colorScheme = useColorScheme();
  const ink = { color: colorScheme === 'dark' ? '#FFFFFF' : '#000000' };
  const sheetRef = useRef<BottomSheet>(null);

  return (
    <View style={{ flex: 1 }}>
      <Button title="Open" onPress={() => sheetRef.current?.snapToIndex(0)} />

      <BottomSheet ref={sheetRef} snapPoints={['50%', '90%']} index={-1} enablePanDownToClose>
        <FlatList
          nestedScrollEnabled
          style={{ flex: 1 }}
          data={DATA}
          keyExtractor={item => item}
          contentContainerStyle={{ padding: 24 }}
          renderItem={({ item }) => <Text style={{ ...ink, paddingVertical: 16 }}>{item}</Text>}
        />
      </BottomSheet>
    </View>
  );
}

平台行为

@gorhom/bottom-sheet 会以内嵌方式显示在其父视图底部。此组件在 Android 和 iOS 上使用原生模态呈现，在 web 上使用 HTML <dialog>。

这是有意为之的差异。@gorhom/bottom-sheet 通过 react-native-gesture-handler 和 react-native-reanimated 管理手势与动画层，而 @expo/ui/community/bottom-sheet 则将这些行为交由 Jetpack Compose、SwiftUI 以及 web 上的 HTML <dialog> 处理。因此，此组件最适合模态底部弹出面板流程，包括使用 BottomSheet API 而非 BottomSheetModal 的调用场景。

功能	Android	iOS	Web
呈现方式	Jetpack Compose 模态底部弹出面板	SwiftUI sheet	HTML `<dialog>` 底部弹出面板
吸附点	映射为部分展开和完全展开状态	支持提供的吸附点	支持提供的吸附点
未设置 `snapPoints`	适配内容	适配内容	适配内容
向下滑动关闭	同时启用返回按钮和点击遮罩关闭	同时启用点击背景关闭	启用点击遮罩、Escape 键和向下滑动关闭
持久内嵌预览	不支持	不支持	不支持

在 iOS 上，如果要在一个底部弹出面板上方显示另一个，请将第二个 BottomSheet 嵌套在第一个弹出面板的内容中，而不是与其并列。这是底层 SwiftUI sheet 修饰符的限制。有关详细信息，请参阅如何呈现多个弹出面板。

支持的导出项

导出项	支持	备注
`BottomSheet`		在 Android 和 iOS 上使用模态呈现，在 web 上使用 HTML 对话框
`BottomSheetModal`		初始关闭，通过 `present()` 打开
`BottomSheetModalProvider`		为保持兼容性，直接渲染子项
`BottomSheetView`		包装弹出面板内容
`BottomSheetScrollView`		重新导出 React Native `ScrollView`
`BottomSheetFlatList`		重新导出 React Native `FlatList`
`BottomSheetSectionList`		重新导出 React Native `SectionList`
`BottomSheetTextInput`		重新导出 React Native `TextInput`
`useBottomSheet`		从 context 返回弹出面板 ref 方法
`BottomSheetBackdrop`		原生弹出面板或 HTML 对话框会处理背景遮罩
`BottomSheetHandle`		原生弹出面板或 HTML 对话框会处理拖动指示器
`BottomSheetFooter`		此实现没有对应项

兼容性说明

支持 snapPoints、index、onChange、onClose、onDismiss、enablePanDownToClose 和 enableDynamicSizing。
handleComponent={null} 会隐藏原生或 web 拖动指示器。在原生平台上不会渲染自定义手柄组件。
backgroundStyle 在 web 上完全生效。在 Android 上，backgroundColor 用于设置原生容器颜色。在 iOS 上，则使用系统弹出面板背景。
为保持 API 兼容性，可以接受动画、过度拖动、内容平移、手柄平移、键盘行为、自定义背景遮罩、自定义背景、自定义页脚、动画值和分离式属性，但不会改变行为。

API

import BottomSheet from '@expo/ui/community/bottom-sheet';

Components

`BottomSheet`

Android

iOS

Web

Type: React.Element<BottomSheetProps>

Bottom sheet component. Defaults to index={0} and opens at the first snap point on mount.

Props for the BottomSheet component. API-compatible with @gorhom/bottom-sheet where native platform behavior allows.

BottomSheetProps

`children`

Android

iOS

Web

Type: React.ReactNode

The content to render inside the bottom sheet.

`enableDynamicSizing`

Android

iOS

Web

Optional • Type: boolean • Default: true

Whether the sheet should automatically size to fit its content.

`enablePanDownToClose`

Android

iOS

Web

Optional • Type: boolean • Default: false

Whether the sheet can be dismissed by panning down.

`index`

Android

iOS

Web

Optional • Type: number • Default: 0

Initial snap point index. Set to -1 to start closed.

`onChange`

Android

iOS

Web

Optional • Type: (index: number) => void

Called when the current snap point index changes.

`onClose`

Android

iOS

Web

Optional • Type: () => void

Called when the bottom sheet is fully closed.

`onDismiss`

Android

iOS

Web

Optional • Type: () => void

Alias for onClose for BottomSheetModal compatibility.

`snapPoints`

Android

iOS

Web

Optional • Type: (string | number)[]

Points for the bottom sheet to snap to, ordered from bottom to top.

`BottomSheetModal`

Android

iOS

Web

Type: React.Element<BottomSheetProps>

Modal variant of BottomSheet. Starts closed and opens with present().

`BottomSheetModalProvider`

Android

iOS

Web

Type: React.Element<{ children: React.ReactNode }>

Provider for BottomSheetModal. It renders children directly for API compatibility.

`BottomSheetView`

Android

iOS

Web

Type: React.Element<BottomSheetViewProps>

A wrapper for content inside a BottomSheet.

Props for the BottomSheetView content wrapper.

BottomSheetViewProps

`children`

Android

iOS

Web

Type: React.ReactNode

The content to render inside the bottom sheet.

`enableDynamicSizing`

Android

iOS

Web

Optional • Type: boolean • Default: true

Whether the sheet should automatically size to fit its content.

`enablePanDownToClose`

Android

iOS

Web

Optional • Type: boolean • Default: false

Whether the sheet can be dismissed by panning down.

`index`

Android

iOS

Web

Optional • Type: number • Default: 0

Initial snap point index. Set to -1 to start closed.

`onChange`

Android

iOS

Web

Optional • Type: (index: number) => void

Called when the current snap point index changes.

`onClose`

Android

iOS

Web

Optional • Type: () => void

Called when the bottom sheet is fully closed.

`onDismiss`

Android

iOS

Web

Optional • Type: () => void

Alias for onClose for BottomSheetModal compatibility.

`snapPoints`

Android

iOS

Web

Optional • Type: (string | number)[]

Points for the bottom sheet to snap to, ordered from bottom to top.

`children`

Android

iOS

Web

Type: React.ReactNode

Hooks

`useBottomSheet()`

Android

iOS

Web

Returns the imperative methods for the nearest BottomSheet.

Returns:

BottomSheetMethods

Types

`BottomSheetMethods`

Android

iOS

Web

Imperative methods exposed by BottomSheet and BottomSheetModal refs.

Property	Type	Description
close	`() => void`	Close the bottom sheet.
collapse	`() => void`	Snap to the minimum snap point.
dismiss	`() => void`	Dismiss the bottom sheet.
expand	`() => void`	Snap to the maximum snap point.
forceClose	`() => void`	Force close the bottom sheet.
present	`() => void`	Present the bottom sheet at the first snap point.
snapToIndex	`(index: number) => void`	Snap to a snap point by index.
snapToPosition	`(position: string \| number) => void`	Snap to a pixel value or percentage position.
